Part #8400

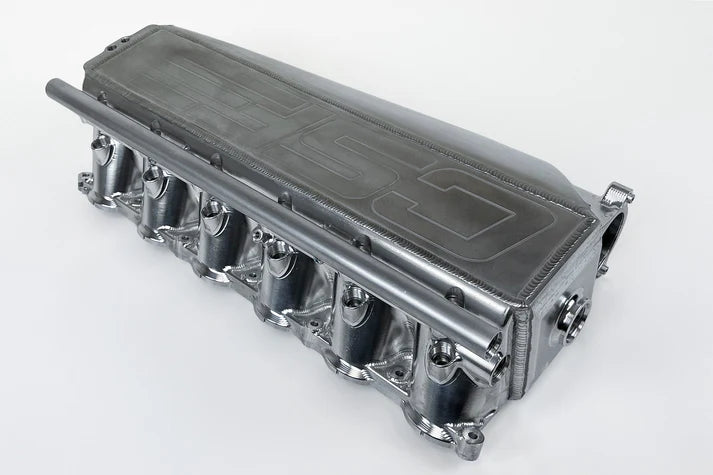

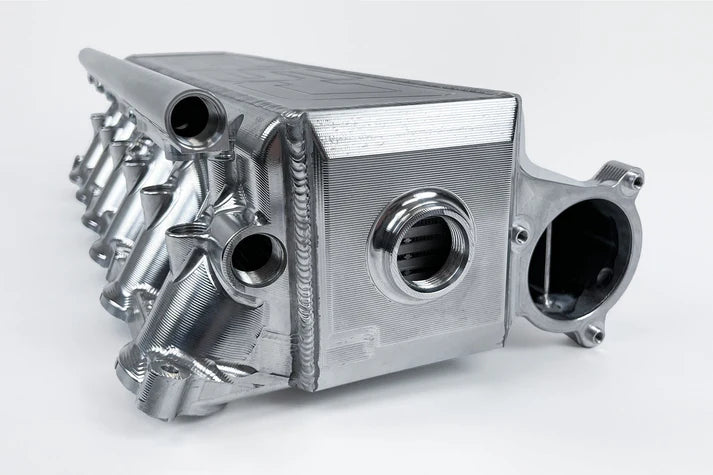

When CSF released the Gen 2 B58 "Super Manifold" for G-Chassis BMW and Supra, it was a smash hit (CSF #8200/8200B/8200C). It quickly became the go-to manifold for racers and enthusiasts looking to get the most out of their B58. While the Gen 2 B58 "Super Manifold" held up amazingly to countless 1000hp builds, customers still wanted more. CSF is proud to offer the "Race X" Charge-Air-Cooler manifold. Another industry leading design by the trio of CSF, VF Engineering, and Custom Plenum Creations.
The Race X Manifold has many of the features and specs as the Super Manifold in addition to some new race focused features. You can read about the development of the CSF Gen 2 B58 Super Manifold in our original press release.

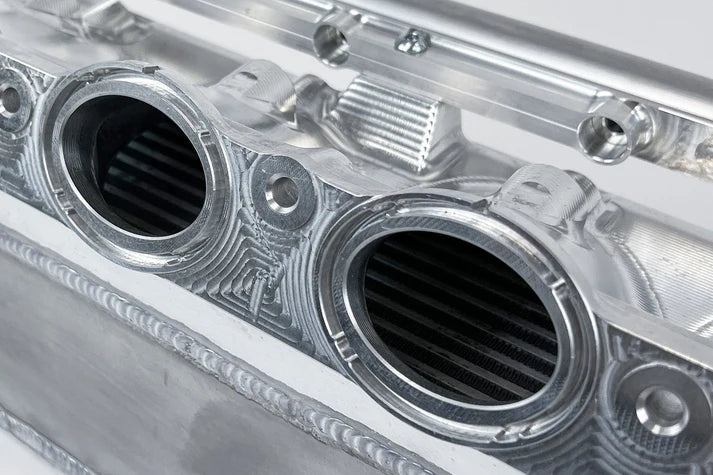

- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) - 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows

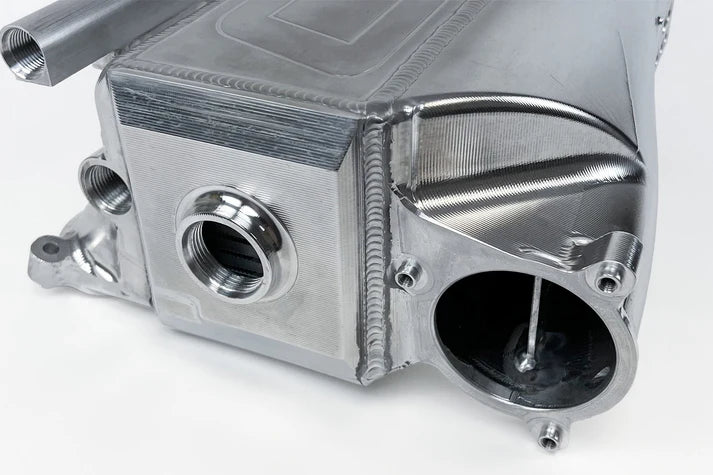

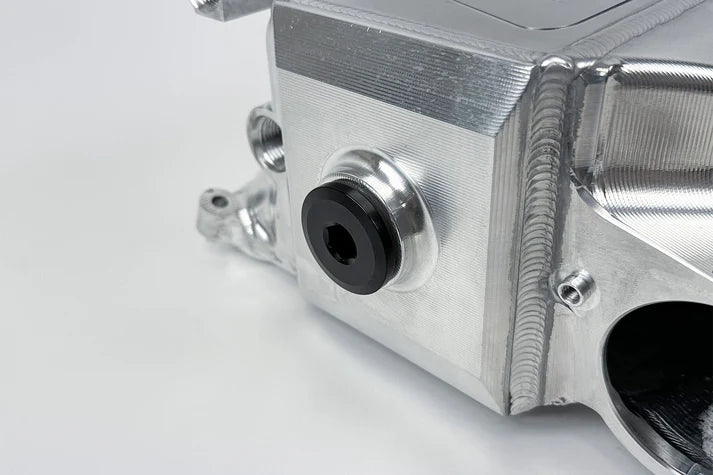

- Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Improved slotted mounting holes on throttle body side for easier installation
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes

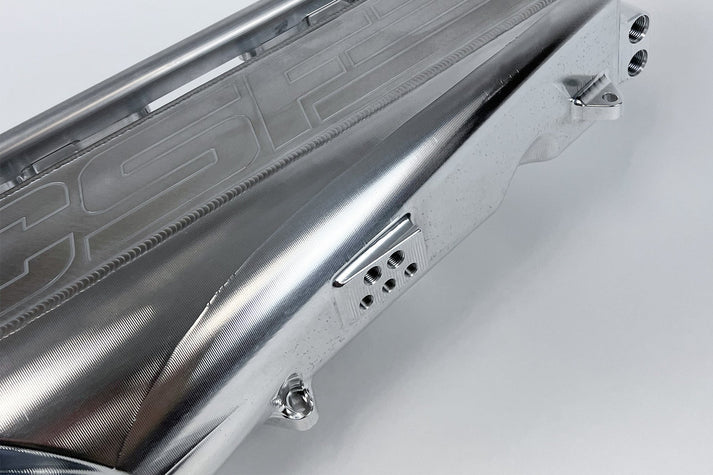

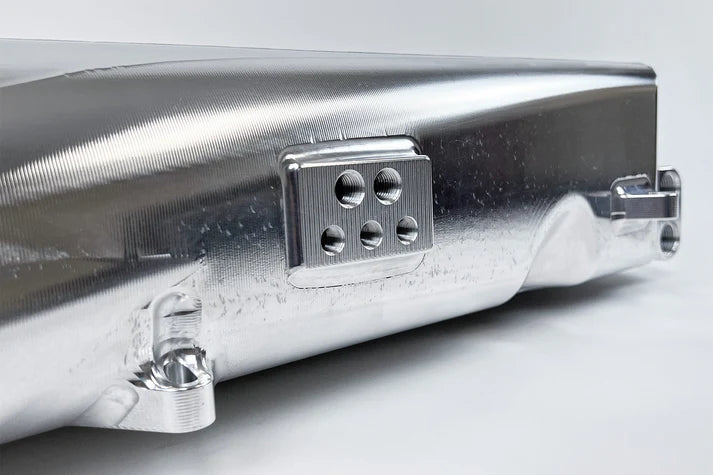

- Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
- Included Fuel Rail for Top Feed Port Injection

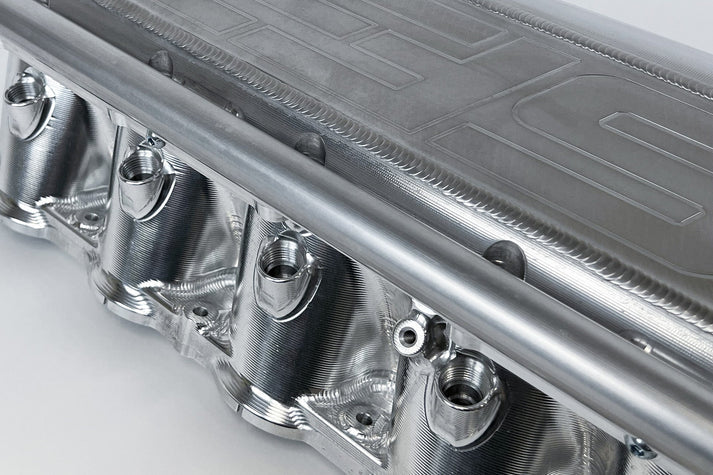

- Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance

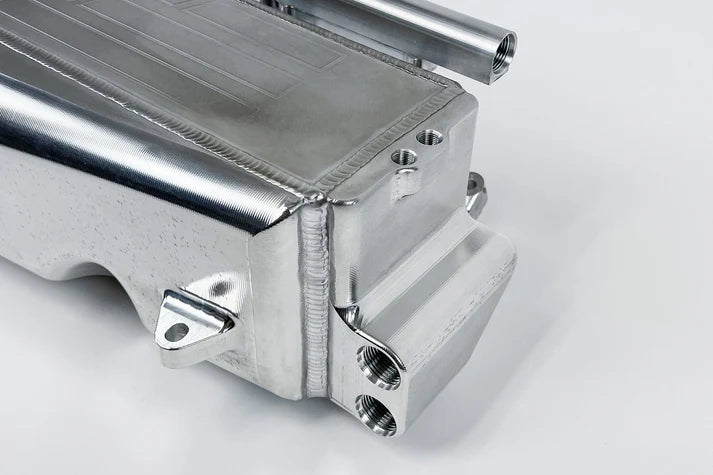

- Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
- Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
- Some modifications to install - this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform

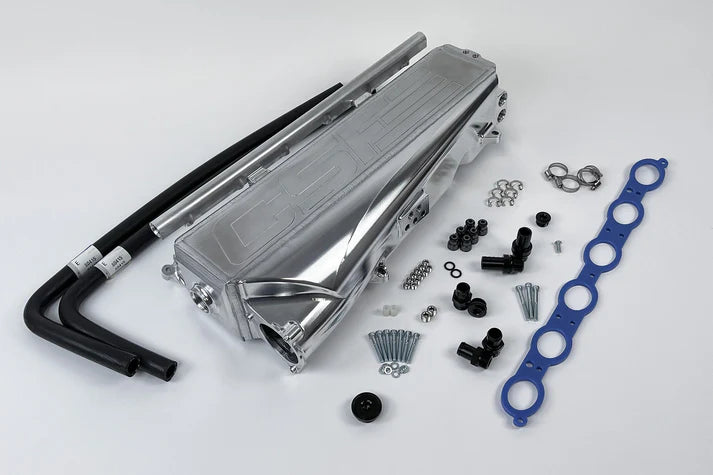

- Includes Hardware and Installation Kit with Picture Diagrams and Instructions

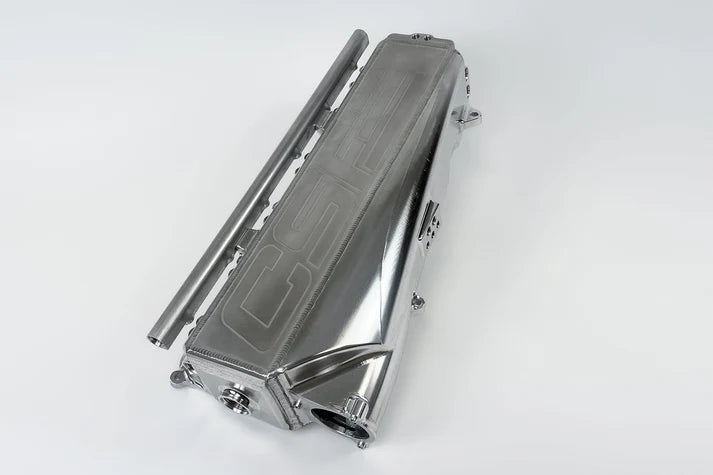

- Comes Finished in Raw Billet Aluminum (Available in Thermal Black Heat Dispersion Cerakote - CSF #8400B or Custom Finishes - CSF #8400C)
- Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
